43-1519-ME
Description

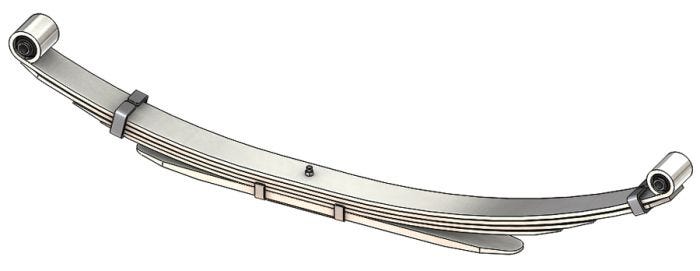

Two-Stage Leaf Spring
Alternate SKU
43-1519, 431519, 5C3Z5560CA, 5C345560FE, 5C345560CE, 5C345A975CE, 431519ME
Weight
81.32
- Attribute Value
- Product Name 43-1519-ME
- Axle Orientation Rear
- Leaf Width 3 in
- Leaves 5
- Pack Thickness 2.36 in
- Length Axis 1 33.25 in
- Length Axis 2 25 in
- Free Arch Length 6.875 in
- Grading Configuration 2/360 2/323 2ND 1/702
- Pack Quantity 5
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Up Turned Eye
- Bushings Included No
- End 1 Bushing RB244
- End 2 Bushing RB245
- Helper Spring No
- Load Rate 3000 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 43-1519
- Make Ford
