42-813-ME

Description

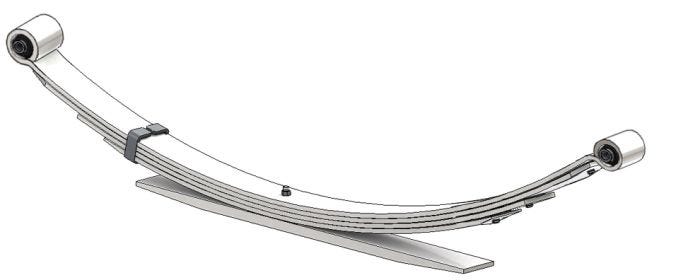

Two-Stage Leaf Spring
Alternate SKU
42-813, 42813, E0TZ5560K, E0TA5560AZB, EOTZ5560AD, 42813ME
Weight
59.00
  • Attribute Value
  • Product Name 42-813-ME
  • Leaf Width 3 in
  • Leaves 5
  • Length Axis 1 31 in
  • Length Axis 2 25 in
  • Free Arch Length 6.625 in
  • Front/Rear Rear
  • Spring Research Institute Number 42-813
  • Axle Orientation Rear
  • Grading Configuration 2/307 2/291 2ND 1/625
  • Bushings Included Yes
  • Helper Spring No
  • Load Rate 1650 lb
  • Suspension Grade Type Standard
  • Pack Quantity 5
  • End 1 Attachment Type Berlin Eye
  • End 1 Bushing RB157
  • End 2 Attachment Type Berlin Eye
  • End 2 Bushing RB158
  • Pack Thickness 1.875 in
  • Company Sku
  • Automann 42-813
  • Dayton 42-813
  • Ford E0TA5560AZB, E0TZ5560K
