34-163-ME

Description

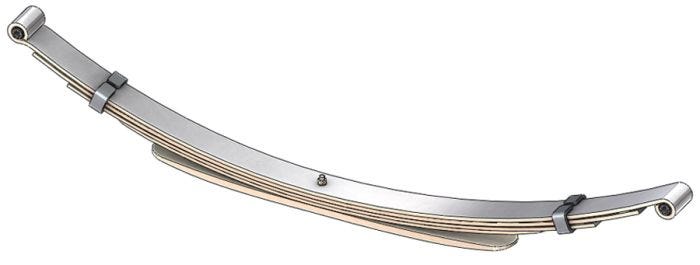

Two-Stage Leaf Spring
Alternate SKU
34-163, 34163, 3897281, 34163ME
Weight
45.00
  • Attribute Value
  • Product Name 34-163-ME
  • Application Dodge
  • Front/Rear Rear
  • End 1 Attachment Type Down Turned Eye
  • End 1 Bushing RB57
  • End 2 Attachment Type Berlin Eye
  • End 2 Bushing RB57
  • Free Arch Length 6.25
  • Grading Configuration 2/291 2/262 2ND 1/558
  • Capacity 1650
  • Number of Leaves 5
  • Leaf Width 2.5
  • Length Axis 1 28
  • Length Axis 2 24
  • Pack Thickness 1.6875
  • Notes TWO STAGE, USE 1/2" SPRING BOLT
  • Company Sku
  • Dayton 34-163
  • Automann 34-163
