34-1487-ME

Description

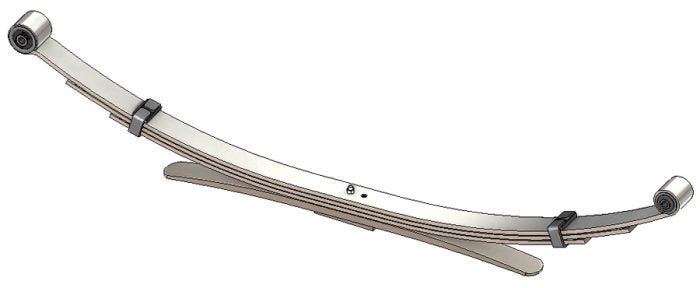

Two-Stage Leaf Spring
Alternate SKU
34-1487, 341487, 52110137AD, 52110137, 341487ME
Weight
60.80
  • Attribute Value
  • Product Name 34-1487-ME
  • Axle Orientation Rear
  • Leaf Width 2.5 in
  • Leaves 4
  • Pack Thickness 1.9375 in
  • Length Axis 1 32 in
  • Length Axis 2 31.25 in
  • Free Arch Length 7.875 in
  • Grading Configuration 1/380 2/360 2ND 1/662 WEDGE
  • Pack Quantity 5
  • End 1 Attachment Type Up Turned Eye
  • End 2 Attachment Type Berlin Eye
  • Bushings Included No
  • End 1 Bushing RB271
  • End 2 Bushing RB272
  • Helper Spring No
  • Load Rate 1700 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 34-1487
  • Make Dodge/Ram
  • Company Sku
  • Automann 34-1487
  • Dayton 34-1487
  • Dodge/Ram 52110137
Two Stage; Dowel pin
