34-1451-ME
Description

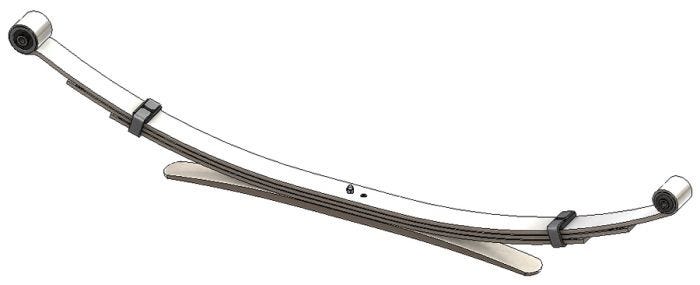

Two-Stage Leaf Spring
Alternate SKU
34-1451, 341451, 34-1451-ID, 341451ID, 52113141AG, 52113141AI, 52113141, 341451ME
Weight
60.80
- Attribute Value
- Product Name 34-1451-ME
- Axle Orientation Rear
- Leaf Width 2.5 in
- Leaves 4
- Pack Thickness 1.9375 in
- Length Axis 1 32 in
- Length Axis 2 31.25 in
- Free Arch Length 7.5 in
- Grading Configuration 1/380 2/360 2ND 1/662
- Pack Quantity 4
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included No
- End 1 Bushing RB271
- End 2 Bushing RB272
- Helper Spring No
- Load Rate 1700 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 34-1451
- Make Dodge/Ram
