34-1343-ME
Description

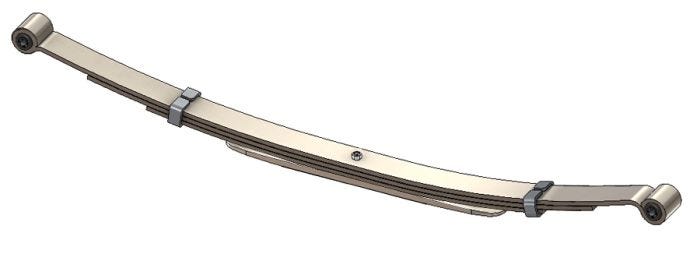

Two-Stage Leaf Spring
Alternate SKU
34-1343, 341343, 52039228, 341343ME
Weight
78.00
- Attribute Value
- Product Name 34-1343-ME
- Leaf Width 3 in
- Leaves 4
- Length Axis 1 32.125 in
- Length Axis 2 27.875 in
- Free Arch Length 5.6875 in
- Load Rate 2860 lb
- Bushings Included No
- Grading Configuration 2/401 1/423 2ND 1/788
- End 1 Attachment Type Down Turned Eye
- End 1 Bushing RB213
- End 2 Attachment Type Berlin Eye
- End 2 Bushing RB213
- Suspension Grade Type Standard
- Spring Research Institute Number 34-1343
- Axle Orientation Rear
- Make Dodge/Ram
- Helper Spring No
- Pack Quantity 4
- Pack Thickness 2.0625 in
