22-909-ME
Description

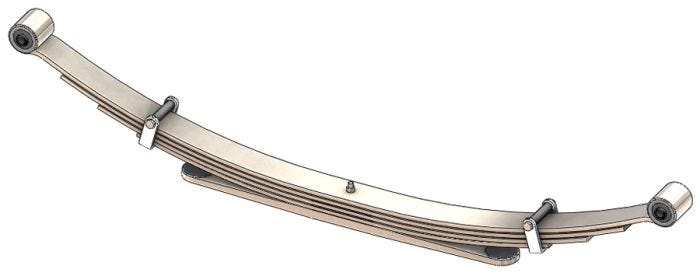

Two-Stage Leaf Spring
Alternate SKU
22-909, 22909, 22-909-ID, 22909ID, 15644917, 22909ME
Weight
54.90
- Attribute Value
- Product Name 22-909-ME
- Axle Orientation Rear
- Leaf Width 2.5 in
- Leaves 5
- Pack Thickness 2.3125 in
- Length Axis 1 27 in
- Length Axis 2 27 in
- Free Arch Length 6.125 in
- Grading Configuration 1/341 3/323 2ND 1/702
- Pack Quantity 5
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included No
- End 1 Bushing RB172
- End 2 Bushing RB172
- Helper Spring No
- Load Rate 1750 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 22-909
- Make Chevrolet, GMC
