22-845-ME

Description

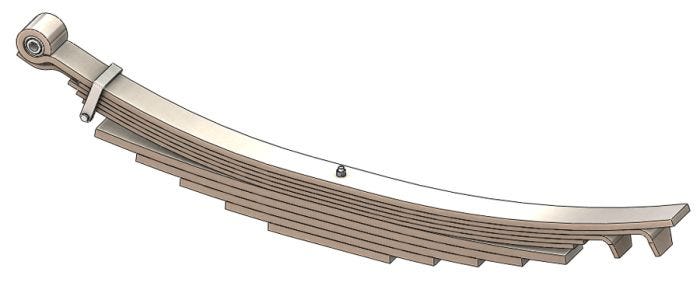

Two-Stage Leaf Spring
Alternate SKU
22-845, 22845, 22-845-ID, 22845ID, 15641034, 22845ME
Weight
218.00
  • Attribute Value
  • Product Name 22-845-ME
  • Axle Orientation Rear
  • Leaf Width 3 in
  • Leaves 10
  • Pack Thickness 6.5 in
  • Length Axis 1 33.375 in
  • Length Axis 2 29.8125 in
  • Free Arch Length 5.375 in
  • Grading Configuration 1/669 4/447 2ND 5/812
  • Pack Quantity 10
  • End 1 Attachment Type Berlin Eye
  • End 2 Attachment Type Hook
  • Bushings Included No
  • End 1 Bushing RB191
  • Helper Spring No
  • Load Rate 11500 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 22-845
  • Make Chevrolet, GMC
TWO STAGE
