22-797-ME
Description

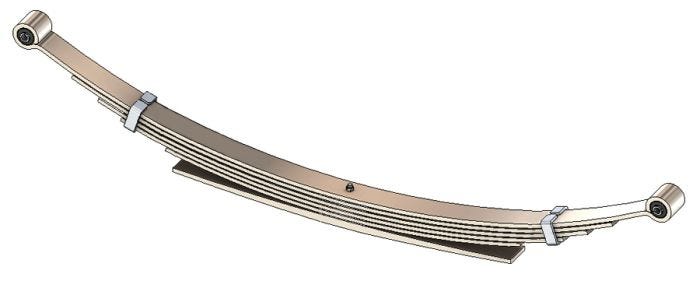

Two-Stage Leaf Spring
Alternate SKU
22-797, 22797, 22-797-ID, 22797ID, 15620358, 15529528, 22797ME
Weight
92.45
- Attribute Value
- Product Name 22-797-ME
- Axle Orientation Rear
- Leaf Width 2.5 in
- Leaves 6
- Pack Thickness 3.25 in
- Length Axis 1 32 in
- Length Axis 2 32 in
- Free Arch Length 6.5 in
- Grading Configuration 4/360 1/341 2ND 1/999
- Pack Quantity 6
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included No
- End 1 Bushing RB172
- End 2 Bushing RB172
- Helper Spring No
- Load Rate 2235 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 22-797
- Make Chevrolet, GMC
