22-795-ME

Description

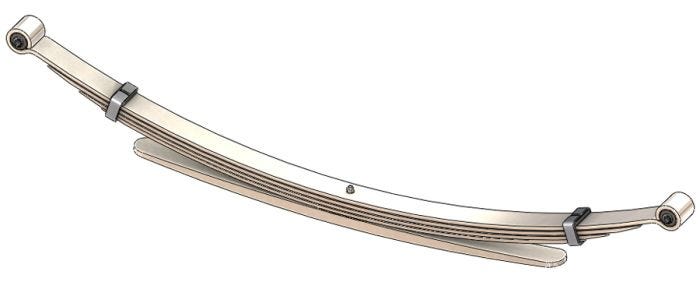

Two-Stage Leaf Spring
Alternate SKU
22-795, 22795, 22-795-CH, 22795CH, 15620357, 15529526, 22795ME
Weight
80.40
  • Attribute Value
  • Product Name 22-795-ME
  • Axle Orientation Rear
  • Leaf Width 2.5 in
  • Leaves 5
  • Pack Thickness 2.6875 in
  • Length Axis 1 32 in
  • Length Axis 2 32 in
  • Free Arch Length 7.75 in
  • Grading Configuration 1/360 3/341 2ND 1/941
  • Pack Quantity 5
  • End 1 Attachment Type Berlin Eye
  • End 2 Attachment Type Berlin Eye
  • Bushings Included No
  • End 1 Bushing RB172
  • End 2 Bushing RB172
  • Helper Spring No
  • Load Rate 2025 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 22-795
  • Make Chevrolet, GMC
TWO STAGE, USE 9/16" SPRING BOLT
