22-687-ID
Description

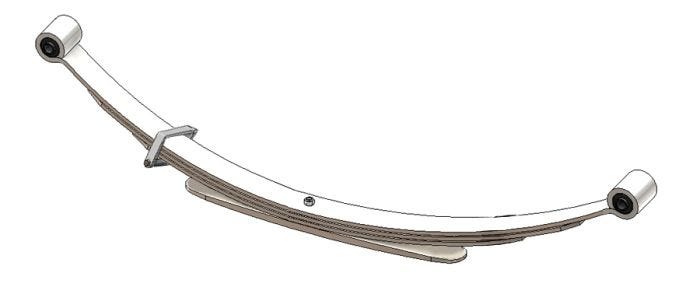

Two-Stage Leaf Spring
Alternate SKU
22-687, 22687, 22-687-ME, 22687ME, 14060056, 22687ID
Weight
45.00
- Attribute Value
- Product Name 22-687-ID
- Axle Orientation Rear
- Leaf Width 2.5 in
- Leaves 4
- Pack Thickness 1.5 in
- Length Axis 1 28 in
- Length Axis 2 26 in
- Free Arch Length 7.5 in
- Grading Configuration 3/307 2ND 1/525
- Pack Quantity 4
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included No
- End 1 Bushing RB117
- End 2 Bushing RB117
- Helper Spring No
- Load Rate 1350 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 22-687
- Make Chevrolet, GMC
