22-553-ME

Description

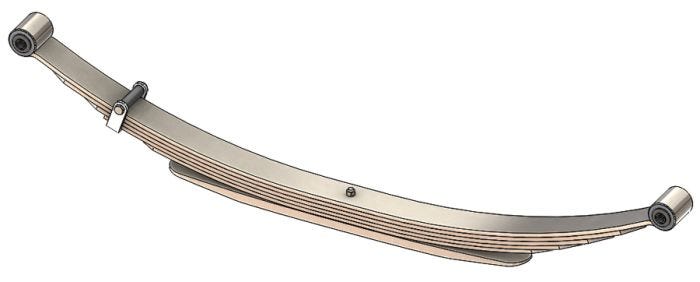

Two-Stage Leaf Spring
Alternate SKU
22-553, 22553, 379305, 22553ME
Weight
57.00
  • Attribute Value
  • Product Name 22-553-ME
  • Axle Orientation Rear
  • Leaf Width 2.5 in
  • Leaves 6
  • Pack Thickness 2.125 in
  • Length Axis 1 26 in
  • Length Axis 2 26 in
  • Free Arch Length 5.875 in
  • Grading Configuration 1/323 2/291 2/262 2ND 1/720
  • Pack Quantity 6
  • End 1 Attachment Type Berlin Eye
  • End 2 Attachment Type Berlin Eye
  • Bushings Included No
  • End 1 Bushing RB117
  • End 2 Bushing RB117
  • Helper Spring No
  • Load Rate 1875 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 22-553
  • Make Chevrolet, GMC
  • Company Sku
  • AutoZone 22-553
  • Automann 22-553
  • Chevrolet 379305
  • Dayton 22-553
TWO STAGE, USE 9/16" SPRING BOLT
