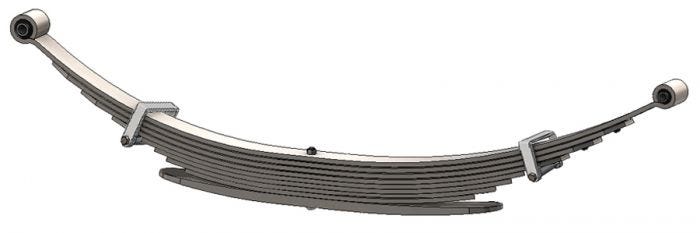

22-547 HD-ME
Description
Heavy Duty Two-Stage Leaf Spring
Alternate SKU
22-547HD, 22547HD, 22-547-HD, 22547HDME
Weight
104.00
- Attribute Value
- Product Name 22-547 HD-ME
- Axle Orientation Rear
- Leaf Width 2.5 in
- Leaves 9
- Pack Thickness 3.625 in
- Length Axis 1 30 in
- Length Axis 2 26 in
- Free Arch Length 5.5 in
- Grading Configuration 8/360 2ND 1/770
- Pack Quantity 9
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included No
- End 1 Bushing RB117
- End 2 Bushing RB136
- Helper Spring No
- Load Rate 3500 lb
- Suspension Grade Type Heavy Duty
- Make Chevrolet, GMC
