22-489-CA
Description

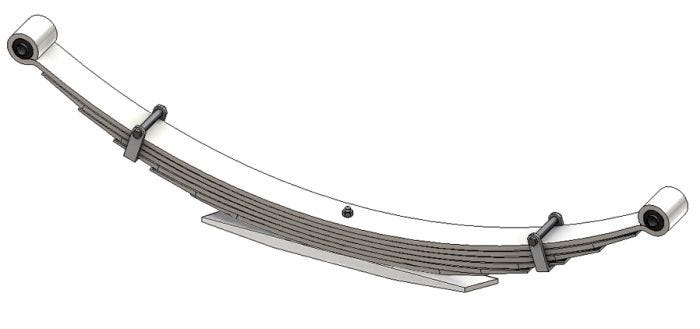

Two-Stage Leaf Spring
Alternate SKU
22-489, 22489, 332842, 22-601, 22601, 22489CA
Weight
72.00
- Attribute Value
- Product Name 22-489-CA
- Axle Orientation Rear
- Leaf Width 2.5 in
- Leaves 7
- Pack Thickness 2.625 in
- Length Axis 1 26 in
- Length Axis 2 26 in
- Free Arch Length 6.25 in
- Grading Configuration 1/323 5/307 2ND 1/770
- Pack Quantity 7
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included Yes
- End 1 Bushing RB117
- End 2 Bushing RB117
- Helper Spring No
- Load Rate 2775 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 22-489
- Make Chevrolet, GMC
- Company Sku
- Automann 22-489
- Chevrolet 332842
- Dayton 22-489
