22-338-CA

Description

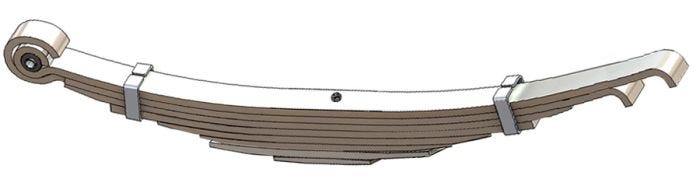

Two-Stage Leaf Spring
Alternate SKU
22-338, 22338, 3891345, 22338CA
Weight
92.00
  • Attribute Value
  • Product Name 22-338-CA
  • Leaf Width 3 in
  • Leaves 7
  • Length Axis 1 34.375 in
  • Length Axis 2 22.5 in
  • Free Arch Length 5 in
  • Front/Rear Front
  • Spring Research Institute Number 22-338
  • Make Chevrolet, GMC
  • Axle Orientation Front
  • Grading Configuration 2/401 3/447 2ND 2/447
  • Bushings Included Yes
  • Helper Spring No
  • Load Rate 4200 lb
  • Suspension Grade Type Standard
  • Pack Quantity 7
  • End 1 Attachment Type Berlin Eye
  • End 1 Bushing RB73
  • End 2 Attachment Type HOOK
  • Pack Thickness 3.0625 in
  • Company Sku
  • Automann 22-338
  • Chevrolet 3891345
  • Dayton 22-338
