22-1649 HD-ME
Description

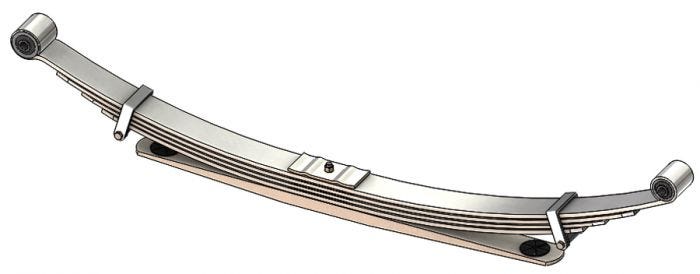

Heavy Duty Two-Stage Leaf Spring
Alternate SKU
22-1649HD, 221649HD, 22-1649-HD, 221649HDME, 22-1649 HD-ID, 221649HDID
Weight
136.20
- Attribute Value
- Product Name 22-1649 HD-ME
- Axle Orientation Rear
- Leaf Width 3 in
- Leaves 5
- Pack Thickness 2.8125 in
- Length Axis 1 34 in
- Length Axis 2 29 in
- Free Arch Length 6.25 in
- Grading Configuration 4/447 2ND 1/999
- Pack Quantity 5
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included Yes
- End 1 Bushing RB340
- End 2 Bushing RB339
- Helper Spring No
- Load Rate 3400 lb
- Suspension Grade Type Heavy Duty
- Make Chevrolet, GMC
