22-1531-ME
Description

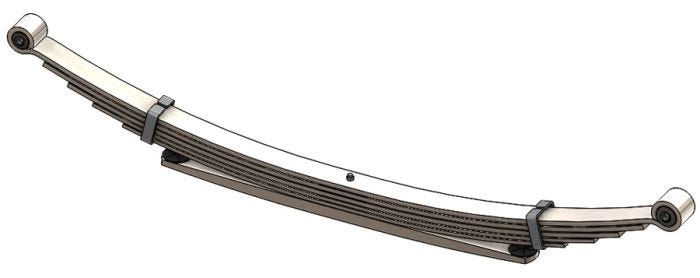

Two-Stage Leaf Spring
Alternate SKU
22-1531, 221531, 25836976, 221531ME
Weight
101.00
- Attribute Value
- Product Name 22-1531-ME
- Axle Orientation Rear
- Leaf Width 2.5 in
- Leaves 6
- Pack Thickness 3.5625 in
- Length Axis 1 32 in
- Length Axis 2 32 in
- Free Arch Length 5.75 in
- Grading Configuration 3/447 2/360 2ND 1/1.063
- Pack Quantity 6
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included Yes
- End 1 Bushing RB172
- End 2 Bushing RB250
- Helper Spring No
- Load Rate 2600 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 22-1531
- Make Chevrolet
