22-1289-ID
Description

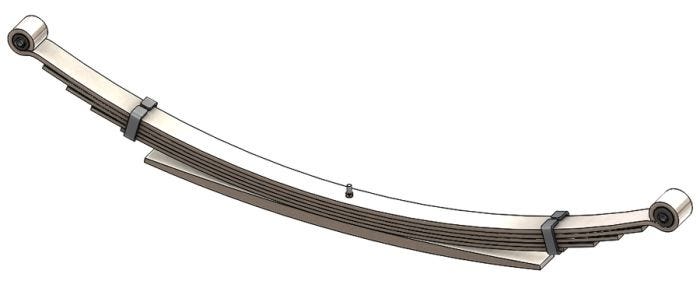

Two-Stage Leaf Spring
Alternate SKU
22-1289, 221289ID, 221289, 15063185, 15063186, 221289ME, 22-1289-ME
Weight
98.40
- Attribute Value
- Product Name 22-1289-ID
- Axle Orientation Rear
- Leaf Width 2.5 in
- Leaves 6
- Pack Thickness 2.95 in
- Length Axis 1 32 in
- Length Axis 2 32 in
- Free Arch Length 7.25 in
- Grading Configuration 1/423 1/380 1/323 2/341 2ND 1/1.063
- Pack Quantity 6
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included Yes
- End 1 Bushing RB172
- End 2 Bushing RB250
- Helper Spring No
- Load Rate 2235 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 22-1289
