22-1289 HD-ID
Description

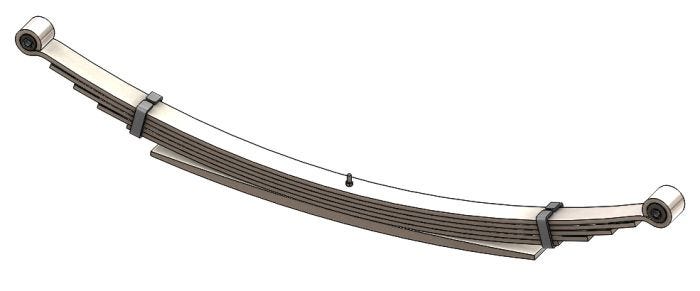

Heavy Duty Two-Stage Leaf Spring
Alternate SKU
22-1289HD, 22-1289 HD, 221289HDID, 221289HD, 221289HDME, 22-1289HD-ID, 22-1289 HD-ME, 22-1289HD-ME, 22-1289HD-ID
Weight
109.80
- Attribute Value
- Product Name 22-1289 HD-ID
- Axle Orientation Rear
- Leaf Width 2.5 in
- Leaves 6
- Pack Thickness 3.23 in
- Length Axis 1 32 in
- Length Axis 2 32 in
- Free Arch Length 6.5 in
- Grading Configuration 5/447 2ND 1/999
- Pack Quantity 6
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included Yes
- End 1 Bushing RB172
- End 2 Bushing RB250
- Helper Spring No
- Load Rate 3200 lb
- Suspension Grade Type Heavy Duty
