22-1269-ID
Description

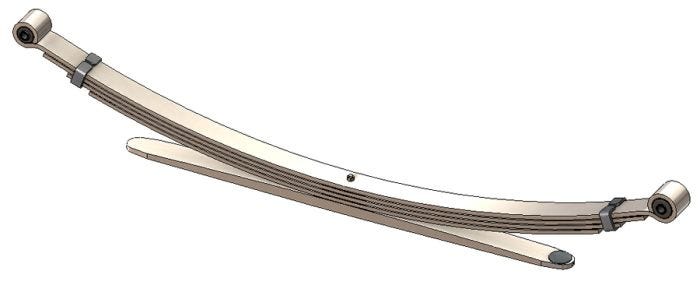

Two-Stage Leaf Spring
Alternate SKU
22-1269, 221269, 22-1269-ME, 221269ME, 15711753, 22-1221HD, 221221HD, 221269ID
Weight
88.50
- Attribute Value
- Product Name 22-1269-ID
- Axle Orientation Rear
- Leaf Width 2.5 in
- Leaves 5
- Pack Thickness 2.75 in
- Length Axis 1 32 in
- Length Axis 2 32 in
- Free Arch Length 6.5 in
- Grading Configuration 1/401 2/360 1/380 2ND 1/938
- Pack Quantity 5
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included No
- End 1 Bushing RB172
- End 2 Bushing RB250
- Helper Spring No
- Load Rate 2025 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 22-1269
- Make Chevrolet, GMC
