22-1221-ME
Description

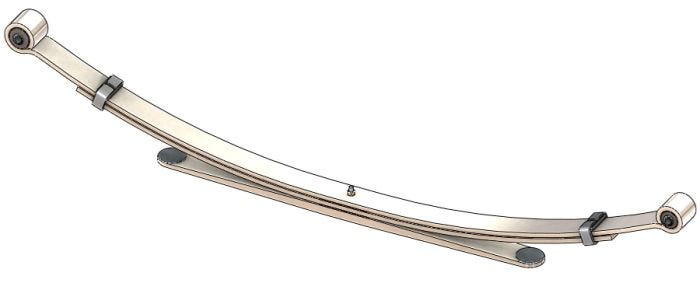

Two-Stage Leaf Spring
Alternate SKU
22-1221, 221221, 22-1221-ID, 221221ID, 15033928, 22-1217, 221217, 22-1275, 221275, 221221ME
Weight
53.81
- Attribute Value
- Product Name 22-1221-ME
- Axle Orientation Rear
- Leaf Width 2.5 in
- Leaves 3
- Pack Thickness 1.75 in
- Length Axis 1 32 in
- Length Axis 2 32 in
- Free Arch Length 6.875 in
- Grading Configuration 1/401 1/423 2ND 1/750
- Pack Quantity 3
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included No
- End 1 Bushing RB172
- End 2 Bushing RB250
- Helper Spring No
- Load Rate 1425 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 22-1221
- Make Chevrolet, GMC
