22-1195-ID
Description

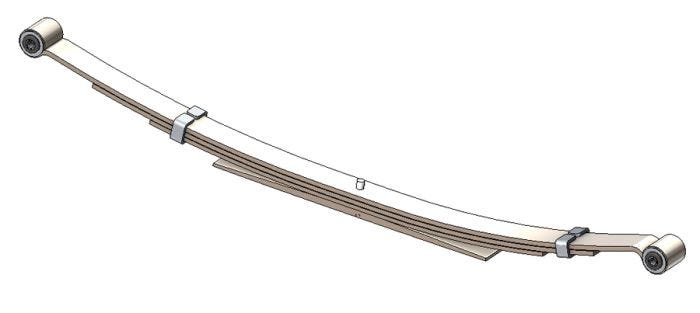

Two-Stage Leaf Spring
Alternate SKU
22-1195, 221195, 22-1195-ME, 221195ME, 15741121, 221195ID
Weight
41.90
- Attribute Value
- Product Name 22-1195-ID
- Axle Orientation Rear
- Leaf Width 2.5 in
- Leaves 4
- Pack Thickness 1.5625 in
- Length Axis 1 28 in
- Length Axis 2 26 in
- Free Arch Length 3.125 in
- Grading Configuration 1/360 1/341 1/323 2ND 1/558
- Pack Quantity 4
- End 1 Attachment Type Dutch Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included No
- End 1 Bushing RB255
- End 2 Bushing RB255
- Helper Spring No
- Load Rate 1410 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 22-1195
- Make Chevrolet, GMC
