22-1175-ME
Description

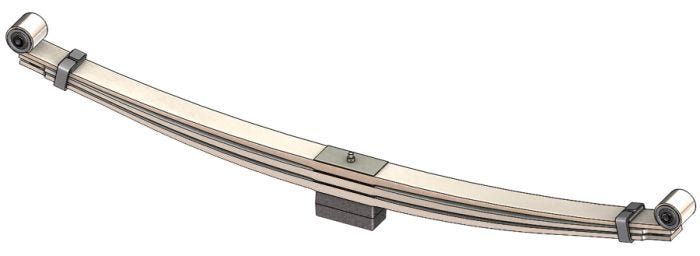

Tapered Leaf Spring
Alternate SKU
22-1175, 221175, 22-1175-US, 221175US, 22132577, 221175ME
Weight
79.50
- Attribute Value
- Product Name 22-1175-ME
- Axle Orientation Rear
- Leaf Width 2.5 in
- Leaves 3
- Pack Thickness 2.8125 in
- Length Axis 1 30 in
- Length Axis 2 30 in
- Free Arch Length 3.75 in
- Grading Configuration 3/840 FULL TAPER
- Pack Quantity 3
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Up Turned Eye
- Bushings Included No
- End 1 Bushing RB172
- End 2 Bushing RB172
- Helper Spring No
- Load Rate 3710 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 22-1175
- Make Chevrolet, GMC
