22-1139-ME

Description

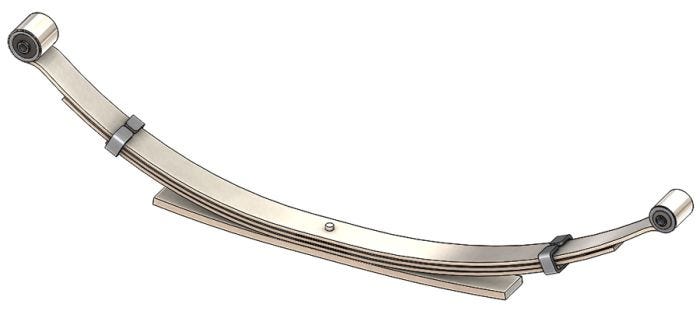

Two-Stage Leaf Spring
Alternate SKU
22-1139, 221139, 15996781, 221139ME
Weight
41.66
  • Attribute Value
  • Product Name 22-1139-ME
  • Axle Orientation Rear
  • Leaf Width 2.5 in
  • Leaves 4
  • Pack Thickness 1.6875 in
  • Length Axis 1 28.59375 in
  • Length Axis 2 25.40625 in
  • Free Arch Length 8.875 in
  • Grading Configuration 3/291 2ND 1/567
  • Pack Quantity 4
  • End 1 Attachment Type Berlin Eye
  • End 2 Attachment Type Berlin Eye
  • Bushings Included No
  • End 1 Bushing RB117
  • End 2 Bushing RB231
  • Helper Spring No
  • Load Rate 1200 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 22-1139
  • Make Chevrolet, GMC
TWO STAGE
