22-1029-CA
Description

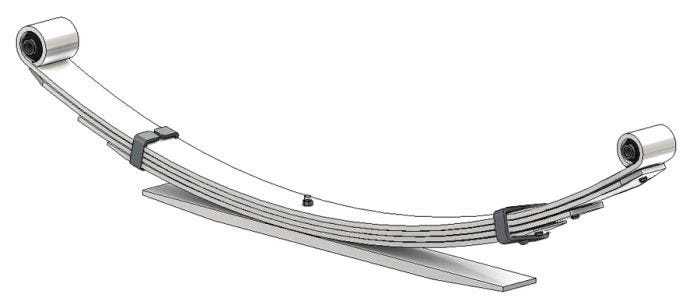

Two-Stage Leaf Spring
Alternate SKU
22-1029, 221029, 15705505, 22-953, 22953, 221029CA
Weight
51.64
- Attribute Value
- Product Name 22-1029-CA
- Axle Orientation Rear
- Leaf Width 2.25 in
- Leaves 5
- Pack Thickness 2.375 in
- Length Axis 1 28 in
- Length Axis 2 26 in
- Free Arch Length 4.5 in
- Grading Configuration 4/360 2ND 1/600
- Pack Quantity 5
- End 1 Attachment Type Up Turned Eye
- End 2 Attachment Type Up Turned Eye
- Bushings Included Yes
- End 1 Bushing RB206
- End 2 Bushing RB130
- Helper Spring No
- Load Rate 1300 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 22-1029
- Make Chevrolet, GMC
- Company Sku
- Automann 22-1029
- Chevrolet 15705505
- Dayton 22-1029
