22-1009-ME
Description

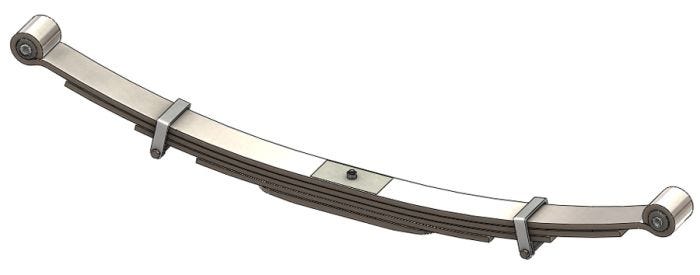

Two-Stage Leaf Spring
Alternate SKU
22-1009, 221009, 15636134, 22-961, 22961, 22-883, 22883, 22-873, 22873, 22-867, 22867, 221009ME
Weight
83.50
- Attribute Value
- Product Name 22-1009-ME
- Axle Orientation Rear
- Leaf Width 3 in
- Leaves 5
- Pack Thickness 2.9375 in
- Length Axis 1 28 in
- Length Axis 2 28 in
- Free Arch Length 4.625 in
- Grading Configuration 3/473 1/447 2ND 1/558
- Pack Quantity 5
- End 1 Attachment Type Berlin Eye
- End 2 Attachment Type Berlin Eye
- Bushings Included No
- End 1 Bushing RB219
- End 2 Bushing RB218
- Helper Spring No
- Load Rate 3345 lb
- Suspension Grade Type Standard
- Spring Research Institute Number 22-1009
- Make Chevrolet, GMC
