21-245R-ME
Description

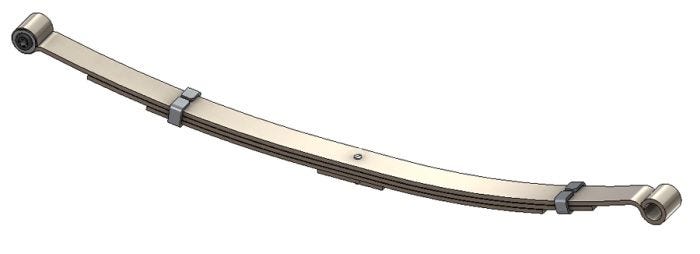

Leaf Spring 3/Leaf Assembly (replaces Mono-Leaf)
Alternate SKU
21-245R, 21245R, 3909940, 21245RME
Weight
29.00
- Attribute Value
- Product Name 21-245R-ME
- Leaf Width 2.5 in
- Leaves 3
- Length Axis 1 (in) 25.00 in
- Length Axis 1 25 in
- Length Axis 2 (in) 31.00 in
- Length Axis 2 31 in
- Free Arch Length 6.5 in
- Front/Rear Rear
- Make Chevrolet
- Axle Orientation Rear
- Grading Configuration 3/323
- Bushings Included Yes
- Helper Spring No
- Load Rate 550 lb
- Suspension Grade Type Standard
- Pack Quantity 3
- End 1 Attachment Type Up Turned Eye
- End 1 Bushing RB95
- End 2 Attachment Type Berlin Eye
- Pack Thickness 1.0625 in
- End 2 Attachment Inside Diameter 1.63 in
- Company Sku
- Automann 21-245
- Dayton 21-245R, 21-303R
