13-352-ME

Description

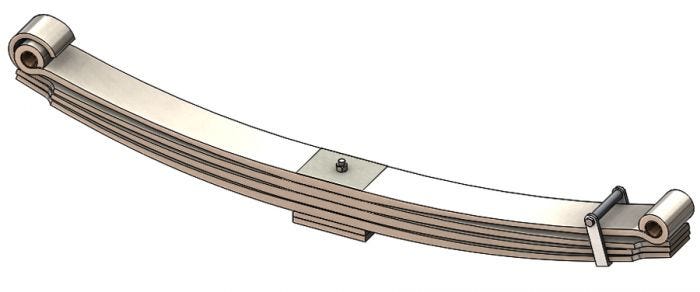

Tapered Leaf Spring
Alternate SKU
13-352-US, 13-352, 13352US, 13352, A3711244-001, A3711244001, 13352ME
Weight
152.10
  • Attribute Value
  • Application Autocar
  • Front/Rear Front
  • End 1 Attachment Type Berlin Eye
  • End 1 Bushing PLK
  • End 2 Attachment Type Berlin Eye
  • End 2 Bushing PLK
  • Free Arch Length 3.4375
  • Grading Configuration 4/788 2PD/499 FULL TAPER
  • Capacity 10200
  • Number of Leaves 6
  • Leaf Width 4.00
  • Length Axis 1 25.25
  • Length Axis 2 27.25
  • Pack Thickness 4.375
  • Notes 13-352 and 13-354 are the same springs with different pad thicknesses. To create 13-354, remove one pad from 13-352
  • Company Sku
  • Dayton 13-352
